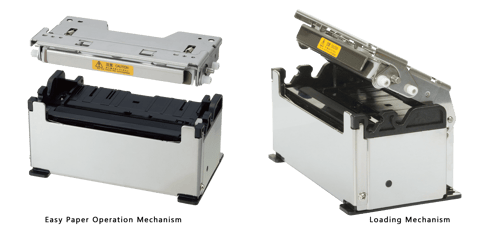

Easy Paper Operation Mechanism / Loading Mechanism 24V
Thermal Printer Mechanism
CAPM series
- Max. printing speed: 300mm/sec
- Build in auto paper cutter
- Head open design for easy paper operation
- Heavy-duty: 200km, 2mil. cuts
- Wide operating temperature: -20°C to 60°C
| Model | CAPM347 | |||
|---|---|---|---|---|
| Easy paper operation model | Loading model | |||
| Regular thermal paper | Regular thermal paper | Thick thermal paper | ||
| *1 Under specified condition. *2 Use recommended thermal papers. | ||||
| Printing | Method | Thermal line dot printing | ||
| Number of dots/line | 640 | |||
| Resolution (dots/mm) | 8 | |||
| Paper width (mm) | 58 / 60 / 80 / 83 |
|||
| Printing width (mm) | 54 / 56 / 72 / 80 | |||
| Speed (mm/sec) max | 300*1 | 300*1 | 280*1 | |
| Detection | Head temperature | By thermistor | ||
| Head position | By mechanical switch | |||
| Out of paper | By photo interrupter | |||
| Mark position | By photo interrupter*1 | |||
| Cutter home position | By photo interrupter | |||
| Power supply (V) | Operation voltage (Vdd) | 2.7 to 3.6 / 4.75 to 5.25 | ||
| Operation voltage (Vp) | 21.6 to 26.4 | |||
| Peak current (A) | Head / Motor / Cutter | 5.6 (26.4V / 144dots) / 1.2 / 1.1 | ||
| Auto Cutter | Method | Slide type | ||
| Paper thickness (μm)*1 | 54 to 90*2 | 54 to 90*2 | 100 to 150*2 | |
| Cutting type | Full cut / Partial cut (Leave center point) | |||
| Service Life | Pulse activation (pulse) | 200 million | 200 million | 100 million |
| Abrasion resistance (km) | 200*2 | 200*2 | 100*2 | |
| Paper cutting (cut) | 2,000,000*2 | 2,000,000*2 | 1,000,000*2 | |
| Operating temperature (˚C) | -20 to 60*1 | -20 to 60*1 | -20 to 60*1 | |
| Dimensions (W×D×H mm) | 110.0 × 61.0 × 53.4 | 110.0 × 61.0 × 55.9 | ||
| Mass (g) | Approx. 500 | |||
| Model | IFM201-01UK |
|---|---|
| *3 Please see "Associated software tool" for details. | |
| CPU | PTM20P01 |
| Thermal printer | CAPM347 |
| Operating voltage (V) | Vp: 21.6 to 26.4 |
| Character matrix (H×W dots) |
16 dots characters: 16 × 8, 16 × 16 24 dots characters: 24 × 12, 24 × 24 |
| Character type | Extended graphics character set, Katakana character set, Codepage (437, 850, 852, 858 and 1252), User-defined character, Downloaded character, Optional font, JIS 1st and 2nd level Kanji, Special characters |
| Communication interface | USB (2.0) |
| Dimensions (W×D×H mm) |
60.0 × 80.0 × 14.0 |
| Software*3 | Printer Driver/SDK, OPOS Driver, POS for .NET Driver, Linux® CUPS Filter/SDK |
| Model | PTM20P01 |
|---|---|
| *4 CG ROM: Japanese *5 Please see "Associated software tool" for details. |
|
| Thermal printer | CAPM347 |
| Package form | 144pin QFP |
| Operating voltage (V) | Vp: 21.6 to 26.4 Vdd: 3.0 to 3.6 |
| Input frequency (MHz) | 12 ± 0.01% |
| Configuration | C-MOS LSI |
| Communication interface | Parallel, Serial, USB |
| Character type | Extended graphics character set, Other characters is available with CGs *4 or external ROM |
| Character matrix (H×W dots) |
16 dots characters: 16 × 8, 16 × 16 24 dots characters: 24 × 12, 24 × 24 |
| Dimensions (W×D×H mm) |
22.0 × 22.0 × 1.7 |
| Software*5 | Printer Driver/SDK, OPOS Driver, POS for .NET Driver, Linux® CUPS Filter/SDK |
