Easy Paper Operation Mechanism 24V
Thermal Printer Mechanism

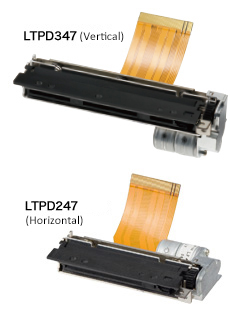

LTPD247/347
- High performance in compact design
- Max. printing speed: 200mm/sec
- Platen latch function
- Label printing *Under specific conditions only.
| Model | LTPD247 | LTPD347 | |
|---|---|---|---|
| *1 Use recommended thermal papers. *2 Excluding protrusion. | |||
| Printing | Method | Thermal line dot printing | |
| Number of dots/line | 432 | 576 | |
| Resolution (dots/mm) | 8 | ||
| Paper width (mm) | 58 |
80 |
|
| Printing width (mm) | 54 | 72 | |
| Speed (mm/sec) max | 200 | ||
| Paper path | Curved | ||
| Detection | Head temperature | By thermistor | |
| Platen position | By mechanical switch | ||
| Out of paper | By photo interrupter | ||
| Power supply (V) | Operation voltage (Vdd) | 2.7 to 3.6 / 4.75 to 5.25 | |
| Operation voltage (Vp) | 21.6 to 26.4 | ||
| Peak current (A) | Head | 2.61 (26.4V / 144dots) / 5.23 (26.4V / 288dots) | |
| Motor | 0.44 | 0.52 | |
| Service Life | Pulse activation (pulse) | 100 million | |
| Abrasion resistance (km) | 100*1 | ||
| Operating temperature (˚C) | -10 to 50 | ||
| Dimensions (W×D×H mm) | Horizontal | 71.0 × 30.0 × 15.0*2 | 91.0 × 30.0 × 15.0*2 |
| Vertical | 71.0 × 15.0 × 30.0*2 | 91.0 × 15.0 × 30.0*2 | |
| Mass (g) | Approx. 56 | Approx. 64 | |
| Model | IFD001-01UK | IFD001-01SK | |
|---|---|---|---|
| *3 Please see "Associated software tool" for details. | |||
| CPU | PTD00P01 | ||
| Thermal printer | LTPD247, LTPD347, CAPD247, CAPD347 | ||
| Operating voltage (V) | Vp: 21.6 to 26.4 | ||
| Character matrix (H×W dots) |
16 dots characters: 16 × 8, 16 × 16 24 dots characters: 24 × 12, 24 × 24 |
||
| Character type | Extended graphics character set, Katakana character set 1, Katakana character set 2, Codepage 1252, User page, Downloaded character, Optional font, JIS 1st and 2nd level kanji, User-defined character |
||
| Data input method | USB (2.0) |
Serial (RS-232C) |
|
| Dimensions (W×D×H mm) |
69.0 × 50.0 × 14.0 | ||
| Software*3 | Printer Driver/SDK, OPOS Driver, POS for .NET Driver, Linux® CUPS Filter/SDK |
||
| Model | PTD00P01 |
|---|---|
| *4 CG ROM: Japanese *5 Please see "Associated software tool" for details. |
|
| Thermal printer | LTPD247, LTPD347, CAPD247, CAPD347 |
| Package form | 120pin QFP |
| Operating voltage (V) | Vp: 21.6 to 26.4 Vcc: 3.0 to 3.6 |
| Operating frequency (MHz) | 12MHz ± 0.01％ |
| Configuration | C-MOS LSI |
| Input method | Parallel, Serial, USB |
| Character type | Extended graphics character set, Other characters is available with CGs*4 or external ROM |
| Character matrix (H×W dots) |
16 dots characters: 16 × 8, 16 × 16 24 dots characters: 24 × 12, 24 × 24 |
| Dimensions (W×D×H mm) |
16.0 × 16.0 × 1.7 |
| Software*5 | Printer Driver/SDK, OPOS Driver, POS for .NET Driver, Linux® CUPS Filter/SDK |
