Easy Paper Operation Mechanism Low Voltage
Thermal Printer Mechanism
LTP02
- Max. printing speed: 100mm/sec

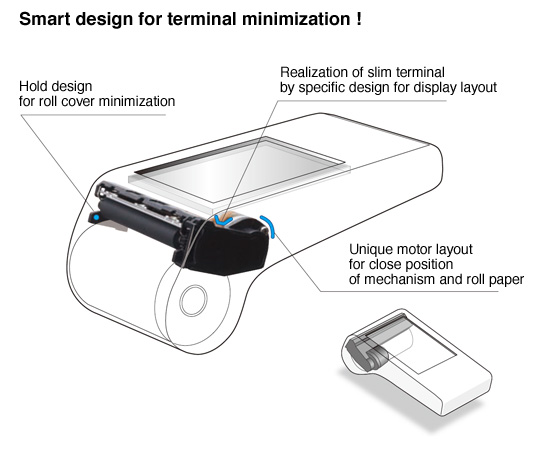

- Extremely compact design for mobile terminal
- Light weight only 28g
| Model | LTP02-245 | |||
|---|---|---|---|---|
| Standard model (LTP02-245-13x) | High speed model (LTP02-245-A3) | Low energy model (LTP02-245-C1) | ||
| *1 Use recommended thermal papers. *2 Excluding protrusion. | ||||
| Printing | Method | Thermal line dot printing | ||
| Number of dots/line | 384 | |||
| Resolution (dots/mm) | 8 | |||
| Paper width (mm) | 58 |
|||
| Printing width (mm) | 48 | |||
| Speed (mm/sec) max | 100 | 120 (9.0V) | 85 | |
| 165 (12.0V) | ||||
| Paper path | Curved | |||
| Detection | Head temperature | By thermistor | ||
| Out of paper | By photo interrupter | |||
| Power supply (V) | Operation voltage (Vdd) | 3.0 to 3.6 | ||
| Operation voltage (Vp) | 5.5 to 9.5 | 5.5 to 9.5 10.8 to 12.6 |
3.0 to 4.2 | |
| Peak current (A) | Head | 2.64 (9.5V / 45 dots) |
3.02 (12.6V / 48 dots) |
5.99 (4.2V / 129 dots) |
| Motor | 0.6 | 0.6 | 1.0 | |
| Service Life | Pulse activation (pulse) | 100 million | 50 million | 100 million |
| Abrasion resistance (km) | 50*1 | |||
| Operating temperature (˚C) | -10 to 50 | |||
| Dimensions (W×D×H mm) | 67.3 × 18.1 × 30.0*2 | |||
| Mass (g) | Approx. 28 | |||
| Model | PT02-5SU | PT02-3U |
|---|---|---|
| Thermal printer | LTP02-245-13x | LTP02-245-C1 |
| Package form | 48pin LQFP | |
| Operating voltage (V) | Vp: 5.5 to 9.5, Vcc: 3.0 to 3.6 | Vp: 3.0 to 4.2, Vcc: 3.0 to 3.6 |
| Input frequency (MHz) | 16 ± 0.01% | |
| Configuration | C-MOS LSI | |
| Communication interface | USB input / output (Device / Printer class / Full speed) | |
| Character type | ASCII Code | |
| Dimensions (W×D×H mm) | 9.0 × 9.0 × 1.5 | |
