Sub-assembled Printer Unit 24V
Sub-assembled Printer Unit
APU-9347-B02
- Max printing speed: 200mm/sec
- Roll paper capacity: up to Φ254mm(10inch) max
- Interface : Serial, Parallel or USB model
- Windows® driver (XP / Vista) *32bit
- Linux driver
- OPOS driver(XP)
| Model | APU-9347-B02 | ||||
|---|---|---|---|---|---|
| *1 ESC/POS™:Registered trademark of SEIKO EPSON CORP. *2 Use recommended thermal papers. *3 Excluding protrusion *Thermal face of paper roll ; inner side Windows® is the registered trademark of Microsoft Corporation(USA). |
|||||
| Printing | Method | Thermal line dot printing | |||
| Number of dots/line | 608 | ||||
| Resolution(dots/mm) | 8 | ||||
| Paper width(mm) | 80 |
||||
| Printing width(mm) | 76 | ||||
| Speed(mm/sec )max | 200 | ||||
| Paper path | Straight | ||||
| Character matrix(H x W dots) | 24 x 24, 24 x 12, 16 x 16, 16 x 8 | ||||
| Character size(H x W mm) | 3.0 x 3.0, 3.0 x 1.5, 2.0 x 2.0, 2.0 x 1.0 | ||||
| Character type | Extend graphics character set, Katakana character set, Optional font, Downloaded character, User-defined character, JIS 1&2 level kanji | ||||
| Bar code | UPC-A/E, JAN(EAN)8/13, ITF, CODE39, CODABAR, CODE93,CODE128,EAN128, PDF417, Data Matrix, Maxi Code, QR Code |
||||
| Power supply(V) | 21.6 to 26.4 | ||||

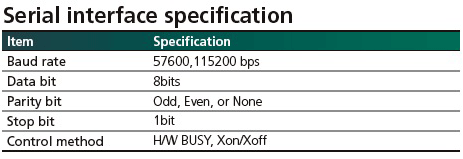

| Communication interface | Serial (RS-232C), USB | ||||
| Input buffer | 2048 bytes | ||||
| Command | ESC/POS™ *1conformity | ||||
| Cutting | Method | Slide type | |||
| Cutting type | Partial cut / Full cut | ||||
| Service life | Pulse activation(pulse) | 150 million | |||
| Abrasion resistance (km) | 150*2 | ||||
| Life(cut) | 1,000,000 | ||||
| Operating temperature(°C) | 0 to 50 | ||||
| Dimensions(W x D x H mm) | 165.15 x 301.25 x 177.1*3 | ||||
| Mass(g) | Approx.2500 | ||||
