| Model | DPU-3445-30A | |
|---|---|---|
| Printing | Method | Thermal line dot printing |
| Number of dots/line | 832 | |
| Resolution(dots/mm) | 8 | |
| Paper width(mm) | 112 |
|
| Printing width(mm) | 104 | |
| Speed(mm/sec)max | 50 | |
| Paper path | Curved | |
| Character matrix (H x W dots) | 24x12, 24x24, 16x8, 16x16 | |
| Character size (H x W mm) |
3.0 x 1.5,3.0 x 3.0,2.0 x 1.0,2.0 x 2.0 | |
| Number of columns | 52, 26, 69, 34 | |
| Character type | Optional Font, Downloaded Character, User-defined Character, Extend Graphics Character set, Katakana Character set, JIS 1&2 level Kanji |
|
| Barcode | UPC-A/E,JAN(EAN)8/13,ITF,CODE39, CODABAR,CODE128 |
|
| Power supply(V) | Li-Ion Battery DC7.2V, Specified AC adapter DC9.3V | |

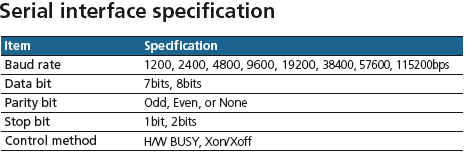

| Communication interface | IrDA(ver1.0), BHT Ir protocol, RS-232C (6-pin Modular jack) | |
| Input buffer | 4Kbyte | |
| Command | ESC/P™*1 conformity | |
| Cutting | Tear bar | |
| Operating | Tmperature(°C) | 5 to 40 |
| Humidity(%RH) | 30 to 80 (Non condensation) | |
| Service life(km) | 30*2 | |
| Dimensions | 160.0 x 89.0 x 29.5 (printer unit)*3 | |
| Mass(g) | Approx.250 (printer unit) | |
| Standed | FCC, CE, VCCI ,CCC | |
| Option | AC Adapter, Paper holder, Battery pack, Battery Charger, AC cable, Serial cable | |
|
*1 ESC/P™: Registered trademark of SEIKO EPSON CORP.
*2 Use recommended thermal papers *3 Excluding protrusion Windows® is the registered trademark of Microsoft Corporation(USA). |
||
