RP-D10 Series

POS Printer POS

POS Printer

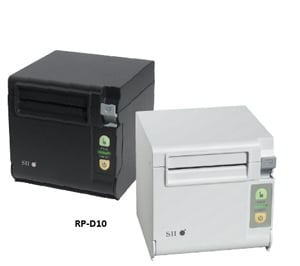

RP-D10 series

Dual purpose: Paper top-exit and front-exit(IPx1)
Compact cube: 129mm x 129mm x 129mm
Max printing speed: 200mm/sec
Paper saving: Receipt top space = 2mm(min.)
Wide variety of driver and utility software suite

Model		RP-D10
^1 Use recommended thermal papers. ^2 Vary according to thermal paper. ^3 Excluding protrusion. ^4 Please see "Associated software tool" for details.
Printing	Method	Thermal line dot printing
	Number of dots/line	576
	Resolution (dots/mm)	203 (8 dots / mm)
	Paper width (mm)	58 / 80
	Printing width (mm)	54 / 72
	Speed (mm/sec) max	200
	Outside diameter of paper roll (mm) max	ф 83
	Inside diameter of paper roll (mm)	ф 12
	Character matrix (H×W dots)	24 × 12, 24 × 24, 16 × 8, 16 × 16
	Character dimensions (H×W mm)	3.0 × 1.5, 3.0 × 3.0, 2.0 × 1.0, 2.0 × 2.0
Type of Paper		Roll paper
Character type		Codepage (14 pages), Katakana character set, User-defined character, Downloaded character, Optional font, JIS 1st and 2nd level Kanji, Special characters
Bar code		UPC-A/E, JAN (EAN) 8/13, ITF, CODABAR, CODE39, CODE93, CODE128, QR Code, PDF417, MaxiCode, Data Matrix
Power supply (V)		Specified AC adapter, External power (DC24V ± 5%)
Communication interface		USB, Serial, Powered USB, Ethernet, Bluetooth®
Input buffer		4k bytes
Command		ESC/POS™ conformity, Markup Language
Cutting	Methods	Slide type
Cutting	Cutting type	Full cut / Partial cut (Leave center point)
Operating temperature (˚C)		5 to 45
Service life (km)	Abrasion resistance (km)	100^*1
Service life (km)	Paper cutting (cut)	1,500,000^*2
Dimensions (W×D×H mm)		129.0 × 129.0 × 129.0^*3
Mass (g)		Approx. 850
Standard		FCC, CE, VCCI, etc.
Option		Wall mounting kit, Back plate
Cash drawer		2 drivers (24V / 1A)
Body color		2 colors: White / Black
Software^*4		Printer Driver/SDK, OPOS Driver, POS for .NET Driver, JavaPOS™, Android™ SDK, iOS SDK, Linux® CUPS Filter/SDK

PAGE TOP

Utility soft

(Build on the Windows® driver)
Memory SW setting, LOG management, USB serial ID setting, NV image registration, Code page registration

POS Printer

RP-D10 Series

Receipt, slip, ticket and more. RP-D10 series is ideal printer for many applications.

Supermarket	Apparel store	Kitchen


High performance printing to speed up checkout process, and improve business efficiency.	Compact design to fits into any tiny space, even under the counter.	By the water proof design, RP-D10 performs as a kitchen printer.

iOS/Android™/Windows® & Bluetooth®

With the stylish and compact design, RP series performs a key role in smart device POS system. The Bluetooth® interface and software SDK for Android™, Windows® and iOS devices provide a best solution for your system.

"Made for iPod", "Made for iPhone", "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone and iPad respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Approval Process for SII MFi printer on APP store »
