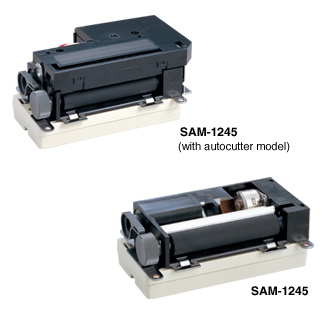

Sub-assembled Printer Unit Low Voltage
Sub-assembled Printer Unit
SAM1245
- Max printing speed: 60mm/sec
- Compact and Light-weight
- Available built-in auto cutter model
| Model | SAM -1245 -10 |
SAM -1245 -10K |
SAM -1245 -11 |
SAM -1245 -11K |
SAM -1245 -12 |
SAM -1245 -12K |
|
|---|---|---|---|---|---|---|---|
| *1 Use recommended thermal papers *2 Excluding protrusion | |||||||
| Printing | Method | Thermal line dot printing | |||||
| Number of dots/line | 384 | ||||||
| Resolution(dots/mm) | 8 | ||||||
| Paper width(mm) | 58 |
||||||
| Printing width(mm) | 48 | ||||||
| Speed(mm/sec)max | 60 | ||||||
| Paper path | Curved | ||||||
| Character matrix example(HXW dots) | 24 X 12, 24 X 24, 16 X 8, 16 X 16 | ||||||
| Character size(HXW mm) | 3.0 X 1.5, 3.0 X 3.0, 2.0 X 1.0, 2.0 X 2.0 | ||||||
| Number of columns | 24,12,32,16 | ||||||
| Character type | Optional font | Yes | Yes | Yes | Yes | Yes | Yes |
| Downloaded character | Yes | Yes | Yes | Yes | Yes | Yes | |
| User-defined character | Yes | Yes | Yes | Yes | Yes | Yes | |
| Extend graphics character set | Yes | Yes | Yes | Yes | Yes | Yes | |
| Katakana character set | No | Yes | No | Yes | No | Yes | |
| JIS 1&2 level kanji | No | Yes | No | Yes | No | Yes | |
| Power supply(V) | Driving voltage(Vcc: 4.5 to 5.5, Vp:4.2 to 8.5) | ||||||

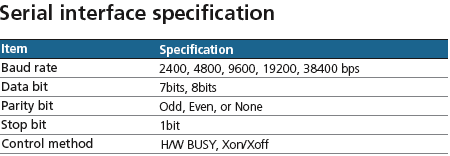

| Communication interface | Serial(C-MOS) | ||||||
| Cutting | Method | None | Circular | ||||
| Cutting Type | None | Full cut | Partial cut | ||||
| Service life | Pulse activation(pulse) | 100 million | |||||
| Abrasion resistance (km) | 50*1 | ||||||
| Operating temperature(°C) | 0 to 50 | ||||||
| Dimensions(W x D x H mm) | 81.3 X 39.5 X 30.0*2 | 91.0 X 54.2 X 40.25*2 | |||||
| Mass(g) | Approx.92 | Approx.150 | |||||
| Standard | FCC, CE, VCCI | ||||||
