Environmental Performance Data
Due to fractional processing, the sum of individual data points may not equal the total.
Energy Consumption
Energy Consumption (Worldwide)
Unit: MWh
| FY2019 | FY2020 | FY2021 | FY2022 | FY2023 | |
|---|---|---|---|---|---|
| Japan | 96,038 | 69,865 | 70,574 | 69,078 | 59,161 |
| Overseas | 95,218 | 61,825 | 69,275 | 65,362 | 58,313 |
| Total | 191,256 | 131,690 | 139,849 | 134,441 | 117,474 |
Aggregation scope: All SII Group companies, both in Japan and internationally
Electricity Consumption
Unit: MWh
| FY2019 | FY2020 | FY2021 | FY2022 | FY2023 | |||
|---|---|---|---|---|---|---|---|
| Japan | Non-renewable energy | 77,897 | 53,644 | 54,101 | 52,028 | 41,722 | |
| Renewable energy | 0 | 0 | 0 | 728 | 735 | ||
| Breakdown: | Purchased | 0 | 0 | 0 | 728 | 735 | |
| Generated | 0 | 0 | 0 | 0 | 0 | ||
| Certificates | 0 | 0 | 0 | 0 | 0 | ||
| Total for Japan | 77,897 | 53,644 | 54,101 | 52,756 | 42,458 | ||
| Renewable Energy Ratio | 0% | 0% | 0% | 1.4% | 1.7% | ||
| FY2019 | FY2020 | FY2021 | FY2022 | FY2023 | |||
| Overseas | Non-renewable energy | 92,639 | 59,313 | 62,651 | 53,997 | 47,909 | |
| Renewable energy | 0 | 0 | 1,535 | 6,269 | 3,992 | ||
| Breakdown: | Purchased | 0 | 0 | 0 | 0 | 0 | |
| Generated | 0 | 0 | 1,535 | 3,169 | 3,992 | ||
| Certificates | 0 | 0 | 0 | 3,100 | 0 | ||
| Total for Overseas | 92,639 | 59,313 | 64,186 | 60,266 | 51,901 | ||
| Renewable Energy Ratio | 0% | 0% | 2.4% | 10.4% | 7.7% | ||
| FY2019 | FY2020 | FY2021 | FY2022 | FY2023 | |||
| Japan+Overseas | Non-renewable energy | 170,537 | 112,958 | 116,752 | 106,025 | 89,632 | |
| Renewable energy | 0 | 0 | 1,535 | 6,997 | 4,728 | ||
| Breakdown: | Purchased | 0 | 0 | 0 | 728 | 735 | |
| Generated | 0 | 0 | 1,535 | 3,169 | 3,992 | ||
| Certificates | 0 | 0 | 0 | 3,100 | 0 | ||
| Total for Japan+Overseas | 170,537 | 112,958 | 118,287 | 113,002 | 94,359 | ||
| Renewable Energy Ratio | 0% | 0% | 1.3% | 6.2% | 5.0% | ||
Aggregation scope: All SII Group companies, both in Japan and internationally
Greenhouse Gas (GHG) Emissions
Scope1 (Direct Emissions from Owned or Controlled Sources)
Unit: t-CO2
| FY2019 | FY2020 | FY2021 | FY2022 | FY2023 | |
|---|---|---|---|---|---|
| Japan | 3,584 | 3,172 | 3,409 | 3,327 | 3,276 |
| Overseas | 473 | 464 | 757 | 728 | 3,562 |
| Total | 4,057 | 3,636 | 4,166 | 4,055 | 6,839 |
Aggregation scope:
- Includes all SII Group companies, both in Japan and internationally.
- Covers greenhouse gases beyond CO2.
- Excludes GHG emissions from biological sources.
Emission Factors:
- Electricity: Calculated using the Emission Factor by Electric Utility in the Law Concerning the Promotion of Measures to Cope with Global Warming.
- Fuel: Calculated using the List of Calculation Methods and Emission Coefficients from the Calculation, Reporting, and Publication System, in accordance with the Law Concerning the Promotion of Measures to Cope with Global Warming.
- Greenhouse gases other than CO2: Calculated using the List of Calculation Methods and Emission Coefficients from the Calculation, Reporting, and Publication System, in accordance with the Law Concerning the Promotion of Measures to Cope with Global Warming.
Scope2 (Indirect emissions associated with the use of energy such as electricity and heat.)
Unit: t-CO2
| FY2019 | FY2020 | FY2021 | FY2022 | FY2023 | |
|---|---|---|---|---|---|
| Japan | 38,781 | 25,527 | 24,476 | 24,603 | 17,712 |
| Overseas | 47,334 | 29,708 | 32,003 | 27,980 | 25,029 |
| Total | 86,115 | 55,235 | 56,479 | 52,583 | 42,741 |
Aggregation scope:
- Includes all SII Group companies, both in Japan and internationally.
Emission Factors:
- Electricity: Calculated using the Emission Factor by Electric Utility in the Law Concerning the Promotion of Measures to Cope with Global Warming, for sites in Japan.
Calculated using the IEA's Emissions Factors dataset for international sites.
Scope1+2
Unit: tCO2
| FY2019 | FY2020 | FY2021 | FY2022 | FY2023 | |
|---|---|---|---|---|---|
| Japan | 42,365 | 28,699 | 27,885 | 27,930 | 20,988 |
| Overseas | 47,807 | 30,173 | 32,760 | 28,708 | 28,591 |
| Total | 90,172 | 58,872 | 60,645 | 56,639 | 49,579 |
Scope3
Unit: tCO2
| Category | Item | GHG emissions （t-CO2） |
% |
|---|---|---|---|
| Category 1 | Products and services purchased | 82,131 | 61.7% |
| Category 2 | Capital goods | 10,746 | 8.1% |
| Category 3 | Fuel and energy-related activities not included in Scope 1, 2 |
7,573 | 5.7% |
| Category 4 | Transportation and distribution (upstream) | 6,154 | 4.6% |
| Category 5 | Waste from business activities | 1,499 | 1.1% |
| Category 6 | Business travel | 1,375 | 1.0% |
| Category 7 | Employee commuting | 2,184 | 1.6% |
| Category 8 | Leased assets (upstream) | 122 | 0.1% |
| Category 9 | Transportation and distribution (downstream) | 39 | 0.0% |
| Category 10 | Processing of sold products | 147 | 0.1% |
| Category 11 | Use of sold products | 20,874 | 15.7% |
| Category 12 | Disposal of sold products | 324 | 0.2% |
| Category 13 | Leased assets (downstream) | - | - |
| Category 14 | Franchises | - | - |
| Category 15 | Investments | - | - |
| total | 133,168 | 100.0% |
Aggregation scope: All SII Group companies, both in Japan and internationally
NOx, SOx
Unit: t
| FY2019 | FY2020 | FY2021 | FY2022 | FY2023 | |
|---|---|---|---|---|---|
| NOx | 1.3 | 1.2 | 1.2 | 1.2 | 0.2 |
| SOx | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 |
Scope of aggregation: Manufacturing sites in Japan that are required to monitor air pollution in compliance with the Air Pollution Control Law.
Waste
Waste Output
Unit: t
| FY2019 | FY2020 | FY2021 | FY2022 | FY2023 | |
|---|---|---|---|---|---|
| Japan | 1,374 | 1,021 | 1,005 | 1,019 | 1,114 |
| Overseas | 2,737 | 2,377 | 2,710 | 2,496 | 1,909 |
| Total | 4,111 | 3,398 | 3,714 | 3,515 | 3,023 |
Aggregation scope: All SII Group companies, both in Japan and internationally
Recycling Rate
Unit: %
| FY2019 | FY2020 | FY2021 | FY2022 | FY2023 | |
|---|---|---|---|---|---|
| Japan | 89% | 75% | 73% | 72% | 82% |
| Overseas | 69% | 69% | 73% | 69% | 63% |
| Total | 76% | 70% | 73% | 70% | 70% |
Aggregation scope: All SII Group companies, both in Japan and internationally
Water
Water Withdrawal Volume
Unit: K ㎥
| FY2019 | FY2020 | FY2021 | FY2022 | FY2023 | ||
|---|---|---|---|---|---|---|
| Japan | Surface water | 165 | 113 | 110 | 104 | 104 |
| Industrial water | 23 | 17 | 12 | 10 | 18 | |
| Groundwater | 192 | 191 | 192 | 178 | 187 | |
| Japan Total | 380 | 322 | 314 | 293 | 309 | |
| Overseas | Surface water | 354 | 182 | 169 | 153 | 142 |
| Industrial water | 0 | 0 | 0 | 0 | 0 | |
| Groundwater | 0 | 0 | 0 | 0 | 0 | |
| Overseas Total | 354 | 182 | 169 | 153 | 142 | |
| Japan+Overseas | Combined Total | 734 | 504 | 483 | 446 | 451 |
Aggregation scope: All SII Group companies, both in Japan and internationally
Waste Water
Unit: ㎥
| FY2019 | FY2020 | FY2021 | FY2022 | FY2023 | ||
|---|---|---|---|---|---|---|
| Japan | Rivers | 82 | 120 | 129 | 116 | 123 |
| Sewers | 33 | 24 | 23 | 40 | 31 | |
| Japan Total | 116 | 144 | 152 | 156 | 154 | |
| Overseas | Rivers | 0 | 0 | 0 | 0 | 0 |
| Sewers | 90 | 182 | 169 | 153 | 142 | |
| Overseas Total | 90 | 182 | 169 | 153 | 142 | |
| Japan+Overseas | Combined Total | 206 | 326 | 321 | 308 | 296 |
Aggregation scope: All SII Group companies, both in Japan and internationally
BOD, COD
Unit: t
| FY2019 | FY2020 | FY2021 | FY2022 | FY2023 | |
|---|---|---|---|---|---|
| BOD | 0.8 | 0.7 | 0.8 | 0.7 | 1.0 |
| COD | 0.6 | 0.4 | 0.5 | 0.5 | 0.7 |
Scope of aggregation: Manufacturing sites in Japan that are required to measure water quality under the Water Pollution Prevention Act
PRTR Substances
| Chemical Substance | Amount Handled | Released | Transferred | Recycled | Consumed | Removed and Treated | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1. Released to the atmosphere |
2. Releases to public water systems |
3. Released to soil |
4. On-site landfill |
5. Transferred to sewage systems |
6. Transferred as waste |
7. Transferred as valuable waste |
8. Transferred as products |
9. Break-down and reaction |
||
| Ethylbenzene | 526 | 141 | 0 | 0 | 0 | 0 | 385 | 0 | 0 | 0 |
| Xylene | 2,704 | 169 | 0 | 0 | 0 | 0 | 638 | 0 | 0 | 1,897 |
| Cobalt and its compound | 9,699 | 0 | 0 | 0 | 0 | 0 | 10 | 348 | 9,340 | 0 |
| Toluene | 1,950 | 1,130 | 0 | 0 | 0 | 0 | 658 | 0 | 162 | 0 |
| Nickel compounds | 420 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 420 | 0 |
| Phenol | 1,418 | 213 | 0 | 0 | 0 | 0 | 1,134 | 0 | 0 | 71 |
| Hydrogen fluoride and its water-soluble salts | 11,146 | 3 | 6 | 0 | 0 | 0 | 10,580 | 0 | 0 | 557 |
| Manganese and its compounds | 7,083 | 0 | 0 | 0 | 0 | 0 | 1,693 | 0 | 5,390 | 0 |
| Methylnaphthalene | 1,650 | 8 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1,642 |
| 239 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 239 | 0 | |
| trimethylbenzene | 2,748 | 32 | 0 | 0 | 0 | 0 | 680 | 0 | 0 | 2,036 |
| Lead compounds | 1,890 | 0 | 0 | 0 | 0 | 0 | 1,511 | 0 | 379 | 0 |
| 4,726 | 876 | 0 | 0 | 0 | 0 | 3,850 | 0 | 0 | 0 | |
| Total | 46,197 | 2,571 | 6 | 0 | 0 | 0 | 21,139 | 348 | 15,930 | 6,203 |
Scope of aggregation: All manufacturing sites in Japan

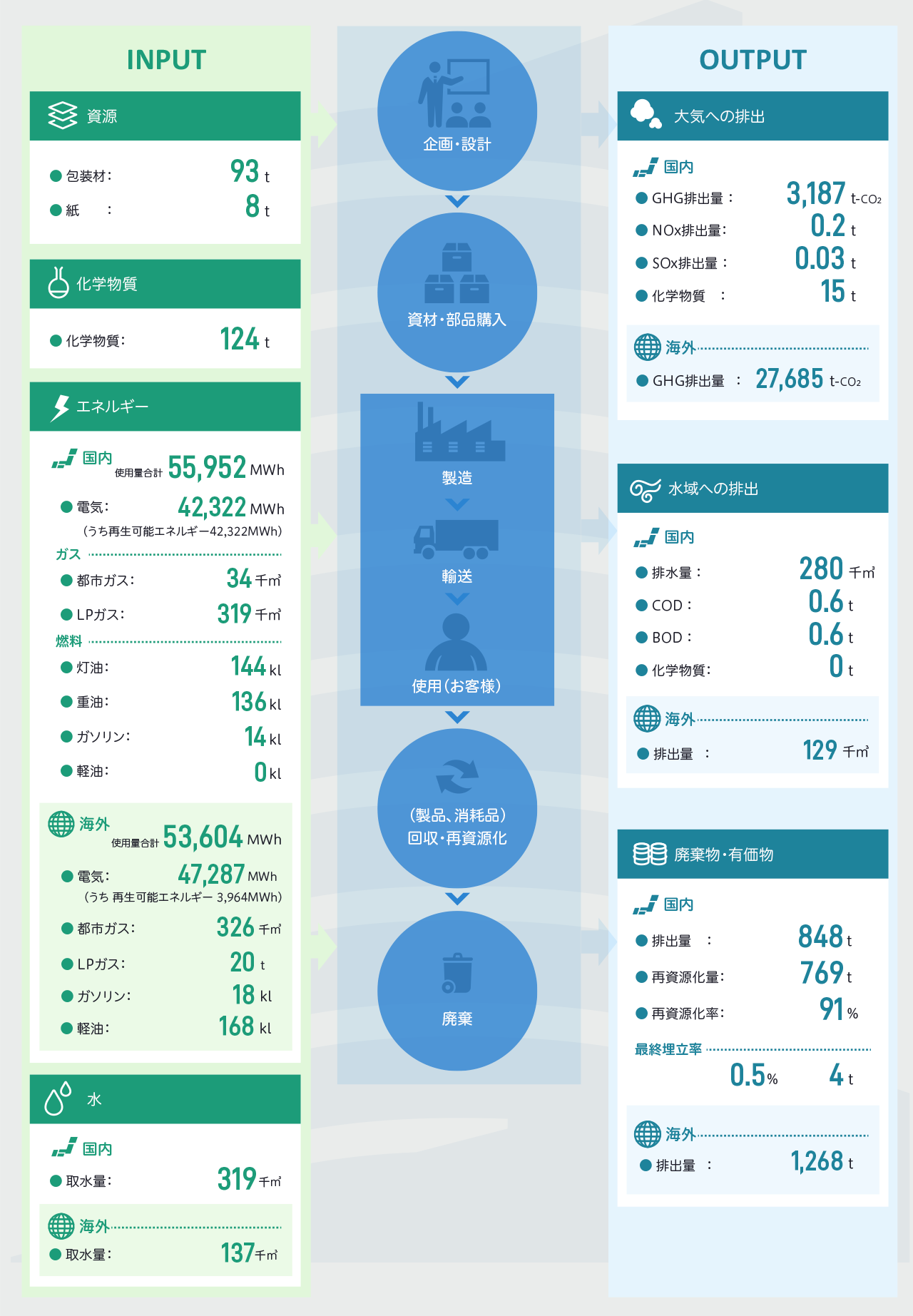

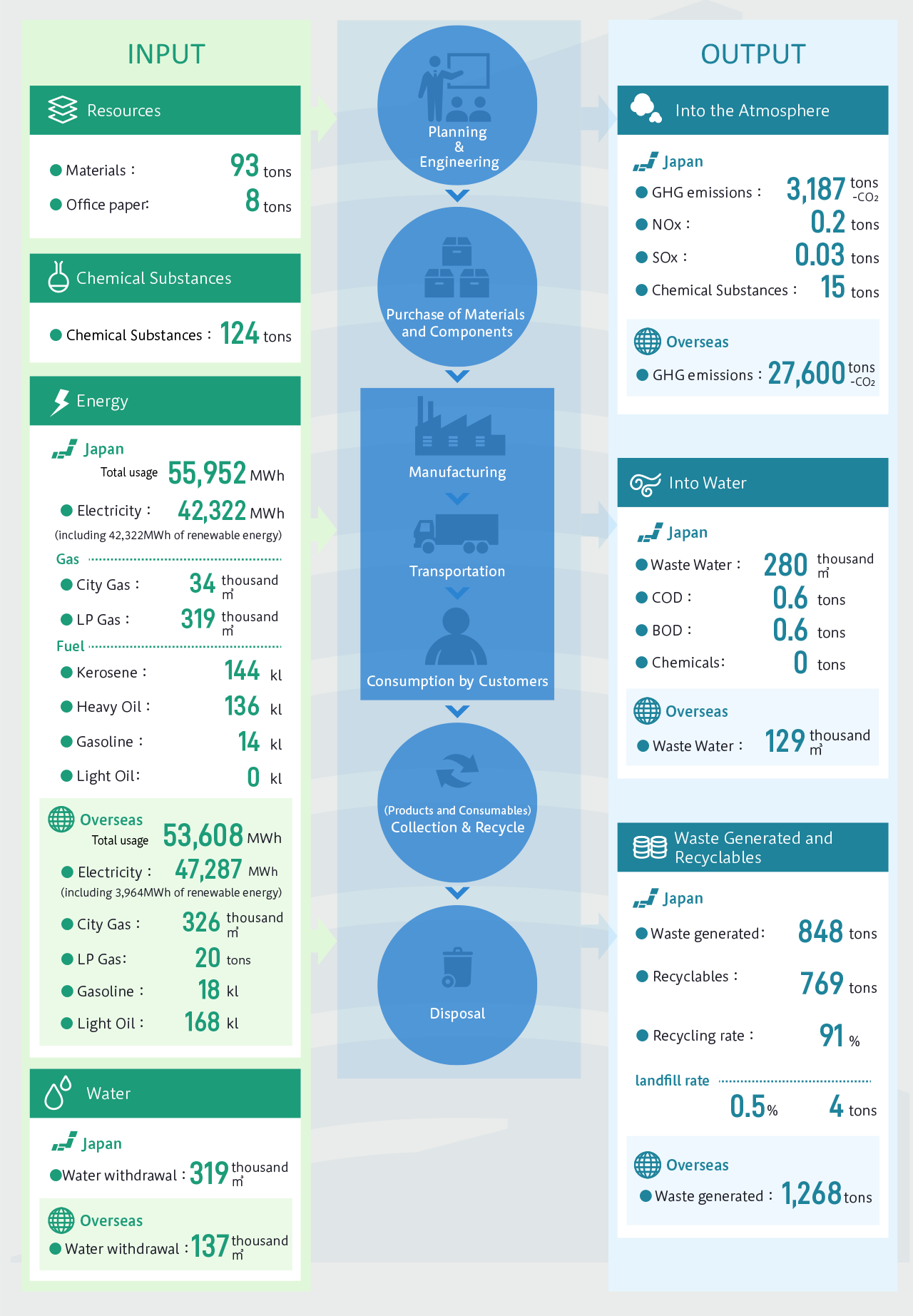

Business Activities and Environmental Impact
The SII Group believes that understanding environmental impact properly throughout the product life cycle is the basic practice of environmental activities. The overview of FY 2023 environmental impact is explained below.
| INPUT | ||
|---|---|---|
| Packaging | : | Plastics and paper to be recycled according to the Law for Promotion of Sorted |
| Office Paper | : | Paper for printers and copiers |
| Chemical Substances |
: | PRTR hazardous chemical substances, HFCs, PFCs, SF6, NF3 and VOC |
| Electricity | : | Power purchased from electric companies |
| Gas | : | City gas and LP gas |
| Fuel | : | Kerosene and heavy oil |
| Water | : | Tap water, industrial water and groundwater |
| OUTPUT | ||
|---|---|---|
| GHG | : | CO2 and other greenhouse gases |
| NOx | : | From use of gas and oil |
| SOx | : | From use of oil *NOx and SOx figures represent business units installing soot and smoke emitting facilities which are regulated by the Air Pollution Control Law. |
| Chemical Substances |
: | PRTR hazardous chemical substances, HFCs, PFCs, SF6, NF3 and VOC discharged into the atmosphere and water |
| Waste Water | : | Released into rivers and sewer systems |
| COD (Chemical Oxygen Demand) |
: | Pollution load *Limited to the business units subject to the regulations in the Water Pollution Control Law covering the total pollution amount |
| BOD (Biochemical Oxygen Demand) |
: | Pollution load *Limited to the business units installing specified facilities as prescribed by the Water Pollution Control Law |
| General Waste | : | Paper and food wastes generated by or as a result of industrial operations |
| Industrial Waste | : | Waste oil, acid, alkali, plastics, ash, sludge, and other materials generated by or as a result of industrial operations |
| Final Landfill Rate | : | The ratio of the landfill amount to the total waste amount |
Results of Water-Quality and Atmosphere Measurements
The results of wastewater-quality and atmosphere measurements are shown below.
Water-Quality Measurements
| Regulated Substances | Takatsuka Unit | SII Crystal Technology | Sendai Unit | Akita Unit | ||
|---|---|---|---|---|---|---|
 |
1 | pH | 7.4～7.9 | 6.7～7.4 | 7.3～7.5 | 6.7～7.5 |
| 2 | BOD | 6.6 | 5.8 | 56 | 4.2 | |
| 3 | COD | － | － | － | － | |
| 4 | Suspended solids | 6 | 1 | 3.1 | 17 | |
| 5 | n-Hex | ND | ND | 13 | ND | |
| 6 | Phenols | ND | 0.1 | ND | － | |
| 7 | Copper | 0.03 | ND | 0.016 | ND | |
| 8 | Zinc | 0.07 | 0.02 | 0.092 | ND | |
| 9 | Iron | 0.47 | 0.1 | 0.39 | － | |
| 10 | Manganese | 0.04 | ND | 0.21 | － | |
| 11 | Total chromium | ND | ND | 0.02 | － | |
| 12 | Number of coliform group | ND | ND | － | 66 | |
| 13 | Nitrogen | 20 | 26 | － | － | |
| 14 | Phosphorus | 0.1 | 0.15 | － | － | |
 |
1 | Cadmium | ND | － | ND | ND |
| 2 | Cyanogen | ND | ND | ND | ND | |
| 3 | Organic phosphorus | ND | － | ND | ND | |
| 4 | Lead | 0.002 | ND | ND | ND | |
| 5 | Hexavalent chromium | ND | － | ND | ND | |
| 6 | Arsenic | ND | － | ND | ND | |
| 7-1 | Total mercury | ND | － | ND | ND | |
| 7-2 | Alkyl mercury | ND | － | － | ND | |
| 8 | PCB | ND | － | ND | ND | |
| 9 | Trichloroethylene | ND | － | ND | ND | |
| 10 | Tetrachloroethylene | ND | － | ND | ND | |
| 11 | Dichloromethane | ND | － | ND | ND | |
| 12 | Carbon tetrachloride | ND | － | ND | ND | |
| 13 | 1,2-dichloroethane | ND | － | ND | ND | |
| 14 | 1,1-dichloroethylene | ND | － | ND | ND | |
| 15 | Cis-1,2-dichloroethylene | ND | － | ND | ND | |
| 16 | 1,1,1-trichloroethane | ND | － | ND | ND | |
| 17 | 1,1,2-trichloroethane | ND | － | ND | ND | |
| 18 | 1,3-dichloropropane | ND | － | ND | ND | |
| 19 | Thiuram | ND | － | ND | ND | |
| 20 | Simazine | ND | － | ND | ND | |
| 21 | Thiobencarb | ND | － | ND | ND | |
| 22 | Benzene | ND | ND | ND | ND | |
| 23 | Selenium | ND | － | ND | ND | |
| 24 | Boron | 0.15 | － | 0.1 | ND | |
| 25 | Fluorine | 1.7 | 0.2 | 0.15 | ND | |
| 26 | Ammonia, Ammonia compounds, Nitrous acid compounds, Nitrates |
16 | 9 | 1.8 | 0.58 | |
| 27 | 1,4 Dioxane | ND | － | ND | ND | |
Atmosphere Measurements
| Regulated Substances | Akita Unit |
|---|---|
| Particulate matter (g/m3N) | ND |
| SOx (m3N/h) | ND |
| NOx (ppm) | 66 |
Environmental Accounting
Environmental Protection Costs
Scope: SII sites in Japan
Period: from April 1, 2022 through March 31, 2023
| Category | Action Item | Investment*1 | Expenses*2 | |
|---|---|---|---|---|
| (1) Business Area Costs | ||||
| Details | 1.Prevention of Environment Disruption | Related to water, atmosphere, noise, and vibration | 24.0 | 224.3 |
| 2.Global Environment Protection | Related to global warming and ozone-layer depletion | 189.3 | 567.3 | |
| 3.Resource Efficiency | Related to resource saving, waste reduction and recycling, procurement management | 2.3 | 379.6 | |
| (2) Upstream and Downstream Costs | Eco-friendly products creation Recycling of products and packaging |
0.1 | 26.5 | |
| (3) Administrative Activities Costs | Environmental education and environmental information disclosure Environmental management system operation | 63.2 | 104.3 | |
| (4) R& Costs | Environmental research and development | 0.0 | 11.2 | |
| (5) Social Activities Costs | Supporting environmental protection groups and communities | 0.0 | 0.0 | |
| (6) Restoration Costs | Restoration of contaminated soil | 0.0 | 0.0 | |
| Total | 278.8 | 1,313.3 | ||
*1 The investment for FY 2022 only. In case we judged that the total outlay included any costs other than environmental protection costs, only the proportion deemed to apply to environmental protection was counted.
*2 Includes depreciation expense for FY 2021 or before. (Equipment and facility investment are depreciated over 5 and 10 years, respectively, in equal yearly increments.) In case we judged that the total outlay included any costs other than environmental protection costs, only the proportion deemed to apply to environmental protection was counted.
Environmental Protection Results
| Environmental Impact | Reduced Amount (Compared to FY 2021) |
|---|---|
| CO2 | 6,941.9 tons-CO2 |
| Water | -15.6 K ㎥ |
| Paper resources | -1.0 tons |
| Industrial Waste | -100.6 tons |
| General Waste | 5.7 tons |
Economies Achieved from Environmental Protection Activities
| Content of Actual SavingsCost Actually Saved | |
|---|---|
| Expense reduction attributable to energy conservation | 354.4 |
| Reduced cost by water use savings | 0.1 |
| Reduced cost by paper use savings | -0.5 |
| Reduced general waste disposal cost | -6.5 |
| Income from sales of valuable resources Single year result | 162.4 |
| Total | 509.9 |
|---|
Acquisition of ISO 14001 Certification
SII first acquired ISO 14001 certification at the Takatsuka Unit (Matsudo, Chiba Prefecture) in November 1996. Currently, every site in Japan, including offices, has acquired certification, and integrated certification was acquired in January 2015. The head office of Seiko Holdings Corporation (now Seiko Group Corporation) also was included in the scope of certification in November 2021. Overseas, each major local subsidiary has acquired certification.
| Name of Registered Organization | Original Approval Date |
Certification Cycle Start Date |
||
|---|---|---|---|---|
| SEIKO GROUP CORPORATION, SEIKO INSTRUMENTS INC. AND SEIKO FUTURE CREATION INC. | November 13, 1996 | March 4, 2024 | ||
| Registered Site | Seiko Instruments Inc. | HEAD OFFICE, MAKUHARI UNIT TAKATSUKA UNIT OHNO UNIT SENDAI UNIT AKITA UNIT |
||
| SII Printek Inc. Seiko Future Creation Inc. Seiko EG&G Co., Ltd. SII Crystal Technology Inc. |
||||
| Seiko Group Corporation | ||||
| Overseas | |||
| Certified Units and Subsidiaries | Location | Date of Certification | |
|---|---|---|---|
| 1 | Dalian Seiko Instruments Inc. | Dalian, China | 6/2001 |
| 2 | Seiko Instruments (Thailand) Ltd. | Thailand | 3/2002 |
| 3 | Seiko Instruments Technology (Shanghai) Inc. | Shanghai, China | 7/2012 |
